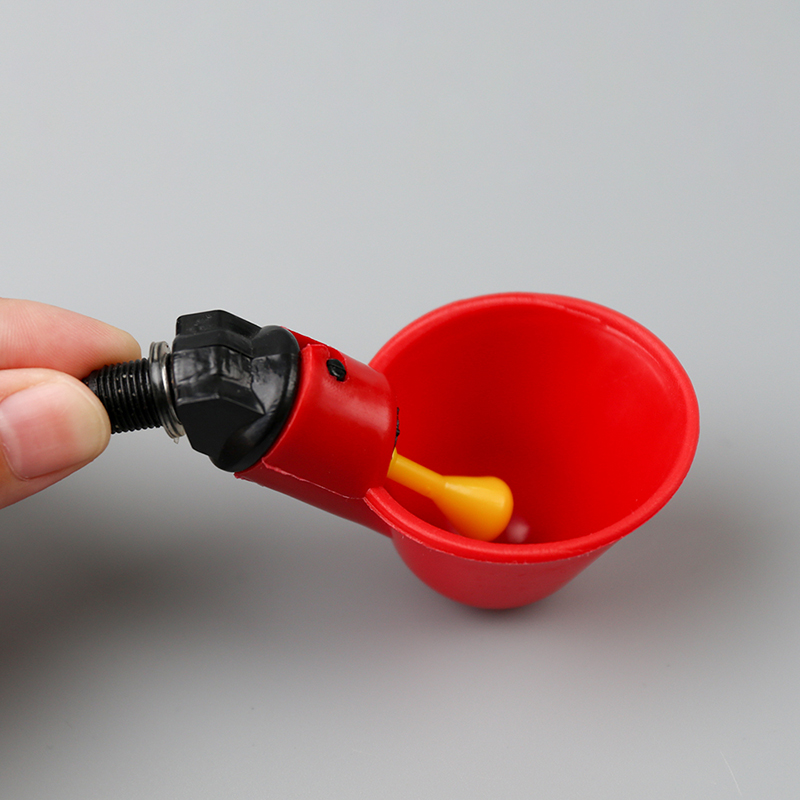

Automatic water dispenser for pigeons and chickens

The automatic water dispenser for pigeons and chickens with a semi-circular drinking bowl is a composite drinking equipment designed specifically for pigeon and chicken breeding. Based on the traditional automatic drinking bowl, the structural form has been optimized to meet the drinking needs of both types of poultry, providing a more convenient drinking solution for the breeding process.

Structure and Working Principle

The water dispenser mainly consists of a semi-circular bowl body, a delicate valve body, an inlet pipe interface, and an adaptable float body. The semi-circular bowl design conforms to the head movement trajectory of pigeons and chickens, making it easy for them to lower their heads and drink water. Its working principle continues the balance mechanism of gravity and buoyancy: when the water level in the bowl drops due to poultry drinking, the valve body automatically opens under the pressure of water supply, and clear water continues to be injected into the bowl; When the water level rises to the set height, the float is lifted by buoyancy, which drives the valve body to close the inlet channel, confirming that the water level in the bowl is stable and avoiding overflow.

Core strengths

Strong adaptability to both birds

Compared to single purpose drinking water equipment, the curved edge and scale of the semi-circular drinking bowl are specially designed to meet the habits of chickens pecking and drinking with their heads down, as well as the needs of pigeons drinking with small sips. There is no need to equip different poultry with separate equipment, saving breeding space and costs.

Balancing water conservation and hygiene

Through meticulous water level control, the waste of water resources caused by poultry trampling and scraping in traditional drinking water tanks has been reduced. The enclosed water inlet structure and smooth inner wall of the bowl are not prone to residual feed residues and feces, reducing the risk of material breeding and allowing pigeons and chickens to access clean water sources, which helps to reduce the occurrence of actual intestinal diseases.

Easy installation and maintenance

Adopting a universal standard inlet pipe interface, it can be directly connected to the water supply pipeline of the breeding farm, making it convenient for both ground installation and hanging fixation, without the need for complex modification processes. In daily use, it is only necessary to regularly wipe the inside of the bowl and check whether the valve body switch is smooth. The maintenance process is simple and suitable for users of different breeding scales to operate.

Practicality adapted to aquaculture environment

The bowl body is often made of materials that are resistant to falling and wear (based on actual reports), which can withstand the impact of daily poultry activities and environmental changes in outdoor farming, such as sun and rain, extending the service life of the equipment and reducing the trouble of frequent replacement.

Daily usage suggestions

To protect the normal operation of the water dispenser, it is recommended to clean the bowl every 3-5 days to remove any remaining scale and impurities; Check the sensitivity of the valve body and float once a month. If poor water inlet or loose closure is found, disassemble, clean or replace vulnerable parts in a timely manner. At the same time, arrange the installation quantity of water dispensers reasonably according to the breeding quantity, and confirm that each poultry can easily obtain drinking water.
